In modern transportation networks, issues such as poor nighttime visibility, ineffective warnings during rain or fog, and frequent accidents on high-risk road sections remain core challenges in road safety management. Traditional reflective road studs rely on headlight reflection and are virtually useless in unlit areas or during inclement weather; round road studs suffer from uneven stress distribution, making them prone to displacement and detachment, and are difficult to adapt to neatly paved environments such as parking lots, intersections, and ramps. With core advantages such as a uniform structure, active flashing warnings, self-powered solar operation, and exceptional durability under heavy pressure, the square flashing LED solar road stud precisely addresses these pain points across various scenarios, making it the preferred safety solution for urban roads, highway ramps, and parking lots within industrial parks.

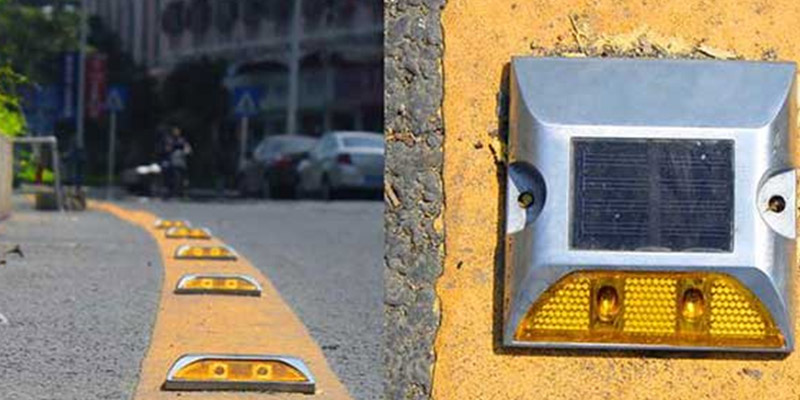

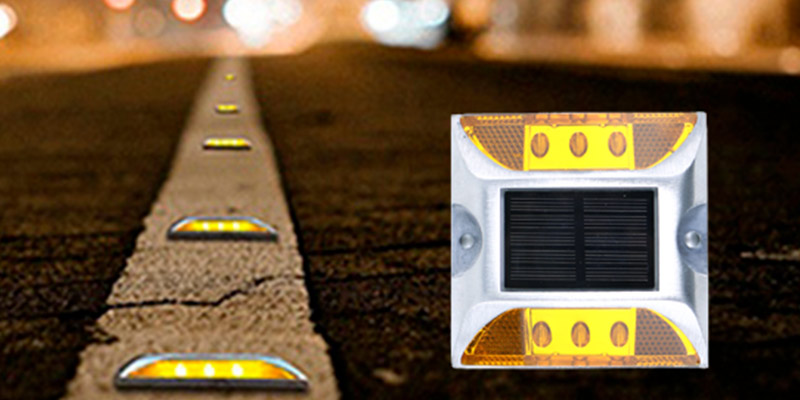

Square stroboscopic LED solar road studs are intelligent traffic warning products installed on road surfaces. Featuring a square structural design, they rely on solar energy storage and automatically emit stroboscopic light at night. They are also known as square solar raised road markers or stroboscopic LED solar cat’s eyes.
The product consists of six core components: a high-strength cast aluminum/PC square housing, a high-efficiency monocrystalline silicon solar panel, a high-brightness LED light array (3–6 LEDs), a smart light-sensing module, a high-temperature-resistant energy storage battery, and a sealed waterproof assembly. It is manufactured using an integrated die-casting process, resulting in a compact and robust structure.
The system operates entirely without human intervention: During the day, the solar panel automatically absorbs light energy, converts it into electricity, and stores it in the battery; at night or in low-light conditions such as rain or fog, the light-sensing module automatically triggers the LED strobe mode; at dawn, the lights automatically turn off and enter charging mode, cycling through day and night operations year-round.
Compared to round road studs, the square structure offers a larger contact area and more even force distribution. When vehicles pass over them, pressure is dispersed, making them less prone to loosening, shifting, or detaching. With a neat, uniform shape that conforms to road surfaces, they are ideal for linear or rectangular layout scenarios such as lane markings, parking lines, and intersection markings. Once installed, they form a neat array that balances safety warnings with road aesthetics.
Equipped with high-brightness LED chips (over 7,000 mcd per chip), it supports multiple color options including red, yellow, white, green, and blue. The 2Hz high-frequency strobing mode delivers dynamic warning effects far surpassing those of constant-on models. Visibility at night extends to over 800 meters. In low-visibility conditions such as rain, fog, or dust storms, the active light source offers exceptional penetration, remains unaffected by external light, and clearly outlines road contours and hazardous areas, allowing drivers to anticipate road conditions in advance and avoid risks.
Featuring a one-piece die-cast aluminum housing, it withstands static pressure of 20–30 tons, enduring repeated rolling from heavy trucks and trailers without deformation or cracking. The square base provides a large contact area with the road surface. When secured with specialized adhesive or screws, the installation is robust and resistant to displacement from vehicle impact, making it ideal for major thoroughfares and highway sections with heavy traffic and frequent heavy-duty vehicles.
No external connection to municipal power grids is required, eliminating wiring installation costs. It can be installed directly in remote, off-grid mountainous areas, rural roads, and industrial parks. Equipped with a built-in high-capacity, high-temperature-resistant nickel-metal hydride battery, it can flash continuously for 5–7 days on a full charge; select long-life models can operate for over 18 days, withstanding prolonged periods of cloudy or rainy weather. Light-controlled automatic on/off operation ensures fully unattended operation; no manual maintenance is required after installation, significantly reducing long-term operational and maintenance costs.
Utilizing an integrated sealing process, the device achieves an IP68 protection rating, offering complete waterproofing and dustproofing. It can withstand prolonged submersion in standing water and is impervious to heavy rain, snowstorms, frost, and intense sunlight. The housing is resistant to aging, corrosion, and extreme temperatures, operating reliably in environments ranging from -40°C to 85°C. It performs stably in outdoor settings across all regions of China, with a service life of 5–8 years.
Supports both adhesive and screw mounting methods. No heavy construction equipment is required; a single unit can be installed in 3–5 minutes after clearing the road surface. Installation is fast and does not disrupt traffic. A full range of sizes is available (103×103×23 mm, 123×133×22 mm, etc.), making it suitable for various paved surfaces such as asphalt, concrete, and epoxy flooring in parking lots. It is universally applicable to urban roads, rural highways, and scenic areas.
Installed on urban thoroughfares, intersections, crosswalks, and the boundaries of non-motorized vehicle lanes, these units clearly demarcate vehicle and pedestrian traffic. They provide nighttime warnings to pedestrians and non-motorized vehicles, reducing accidents caused by mixed traffic. They also supplement lighting in unlit sections to enhance nighttime safety.
Mass installation on highway curves, long downhill slopes, sections near water or cliffs, and merging/diverge ramps provides early warnings of hazardous road conditions. It reminds drivers to slow down, stay in their lanes, and avoid lane departure and rear-end collisions caused by drowsy driving or poor visibility.
Used at large open-air parking lots and underground garage entrances/exits for parking space demarcation, lane guidance, and speed reduction warnings at entrances/exits. The neat, square layout aligns with parking lines to guide vehicles for orderly parking and traffic flow, improving parking lot efficiency and safety while reducing minor collisions.
Installed along the boundaries of roadways and walkways within industrial parks, residential communities, and tourist attractions, these lights balance safety warnings with landscape harmony. With soft, non-glare lighting, they guide pedestrians and vehicles at night, preventing them from getting lost or colliding, while meeting the requirements for quiet and aesthetically pleasing environments.
Ideal for unlit rural roads, mountain trails, village entrances, and dangerous sections near water or cliffs. Solves the challenges of insufficient lighting and lack of power supply in remote areas. Active flashing warnings reduce nighttime travel risks and safeguard villagers’ safety.
Specifications: 103 x 103 x 23 mm, cast aluminum housing, 25-ton load capacity
Highlights: 6 high-brightness LEDs, dual-sided illumination, strobe/constant-on dual modes
Applications: High-speed main roads, rural heavy-duty roads, intersections, and other high-load scenarios
Specifications: 123 x 133 x 22 mm, ultra-thin design, protrudes only 7 mm above ground
Highlights: PC + cast aluminum composite material, impact-resistant, snowplows can pass normally
Applications: Urban side streets, sidewalks, scenic area walkways, underground garage entrances/exits
Specifications: 1049523 mm, lightweight design, high cost-effectiveness
Highlights: 3 LEDs, single-sided illumination, basic strobe mode
Applications: Large parking lots, internal roads within campuses, residential walkways, and other low-cost retrofit scenarios
|
Comparison Dimensions |
Square solar road studs |
Circular solar road studs |
|
Structural stress |
It has uniform stress distribution,high |
Concentrated stress, weak compressive strength,and prone to loosening and falling off. |
|
Adapted scenarios |
Neat road surface, lane lines, parking |
Curves, circular boundaries, park |
|
Warning effect |
Double-sided /Lights from all four sides, |
360°Illuminated, with no blind spots,providing gentle warnings |
Strobe: Dynamic warning, high visibility, strong penetration in rain and fog, lower energy consumption; suitable for hazardous road sections and low-visibility scenarios
Constant-On: Soft light, visually comfortable, higher energy consumption; suitable for quiet environments such as campuses, residential communities, and sidewalks
Materials: HOAN uses die-cast aluminum + imported PC, offering anti-aging and corrosion resistance; standard models are often made of recycled plastic, prone to breakage and fading
Waterproofing: HOAN meets IP68 standards with fully sealed waterproofing; standard models are IP65 or lower, prone to water ingress and damage in rainy or overcast conditions
Battery Life: HOAN’s long-lasting models can operate for 18 days; standard models last only 3–5 days and are prone to failure in rainy or overcast weather
Prioritize core specifications: For long-term outdoor use, choose cast aluminum models with IP68 waterproofing and a pressure resistance of ≥20 tons to avoid low-quality plastic models.
Select lighting modes based on the scenario: Choose high-frequency strobe for hazardous road sections and areas prone to rain and fog; choose constant-on or low-frequency strobe for parks and residential communities.
Choose installation method based on road surface: Use specialized adhesive for asphalt/concrete surfaces; use screws for heavy-duty sections
Choose reputable brands: Select brands like HOAN that have years of manufacturing experience, comprehensive quality control systems, and international certifications. These brands guarantee quality and provide one-stop services including installation guidance, bulk customization, and after-sales warranty.
The square flashing LED solar road studs offer five core advantages: active flashing warnings, square design for compression resistance and stability, self-powered solar operation, IP68 waterproofing and durability, and simple, low-cost installation. They are perfectly suited for all scenarios—including urban roads, highway ramps, parking lots, and rural roads—fundamentally addressing the various pain points of traditional warning facilities and significantly enhancing road traffic safety.
