Reflective Road Stud HA-109

This road studs will be high-strength optical glass, improve the surface of the protruding road marker compressive strength, impact strength and anti-aging ability, self-cleaning ability, omnidirectional light in line with ASTM-4280 standard.
Protection class: IP68
Certificate: CE, ROHS, ISO9001
Warranty: 2 Years
Share With:
Product Introduction
Reflective Road Studs, also called raised road signs.Is a kind of traffic safety facilities. Mainly installed in the middle of the road marking or double yellow line in the middle, through its retro-reflective properties to remind drivers to drive according to the lane.
Tempered glass road studs have more than fifteen years of application experience, can be widely used in the middle of the road and other traffic flow in the area, the pressure resistance in more than 30 tons.
The bottom of the product metal plating layer, not easy to fall off, embedded design, more stable when installed, not easy to fall off, in line with EN1463-1 standard.
Product Advantages
Optical tempered glass, omnidirectional luminescence, pressure resistance of 30T.
Metal plating coating, not easy to fall off.
Spherical design of luminous surface, self-cleaning.
Shell never yellowing.
Embedded design, high impact resistance, friction resistance.
Product Parameters
Size : 100*50mm
Material : glass

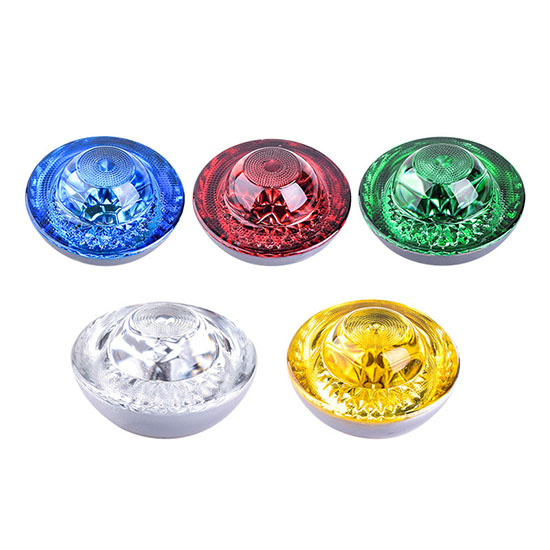

Color: White Yellow Red Blue Green
Working temperature: -20℃~+70℃
Product Install
Mark the correct installation location and clean it up (generally 3m apart).
Pour the glue on the installation location.
Clean the bottom of the solar road stud and place it on top.
After installation, clean up the spilled glue and debris around, wait for 4-8 hours to activate.
