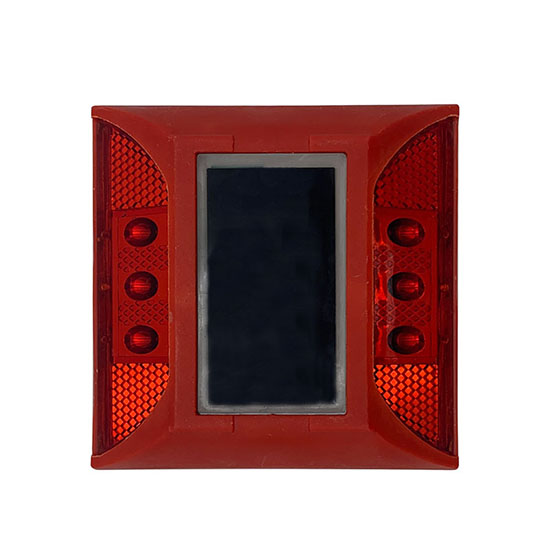

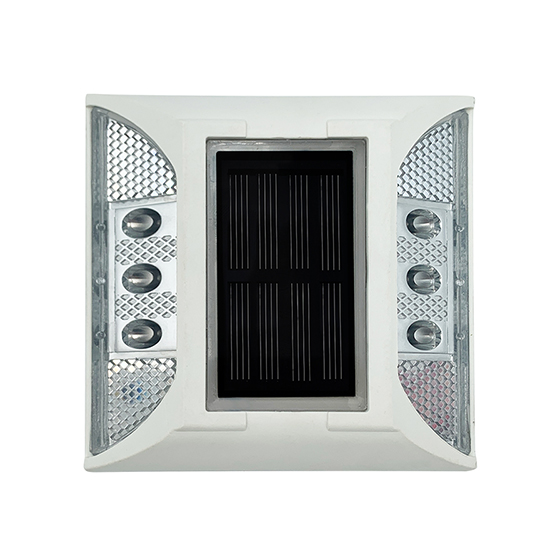

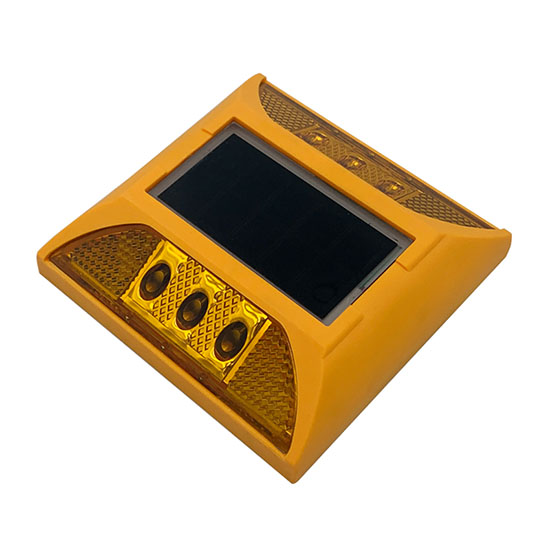

Solar Road Stud HA-RS-D2

Plastic reflective solar road studs shell is reinforced ABS plastic + glass fiber, pressure resistance 20T, low price, a combination of active and passive light-emitting.
Protection class: IP68
Certificate: CE, ROHS, ISO9001
Warranty: 2 Years
Share With:
Product Introduction
Solar road studs, is a kind of road studs, set along the road surface, for night or rain and fog weather, indicating the direction of the road ahead, by retro-reflective materials, shell, solar panels, LED, control devices. With active light-emitting and passive reflective properties of visual induction, usually used in combination with the marker.

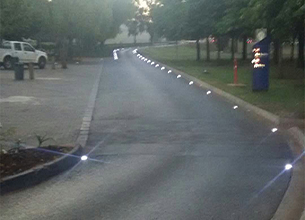

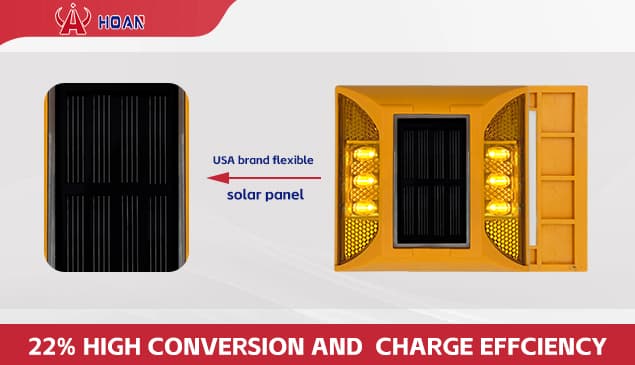

Solar road studs work: during the day, solar panels absorb sunlight, solar energy into electrical energy stored in energy storage devices (batteries or capacitors), at night, the electrical energy in the storage devices automatically converted into light energy (controlled by photoelectric switch), through the LED emits bright light to outline the road, to induce the driver's line of sight.
Product Advantages
Solar cell protective shell descending surface design, reduce vehicle friction.

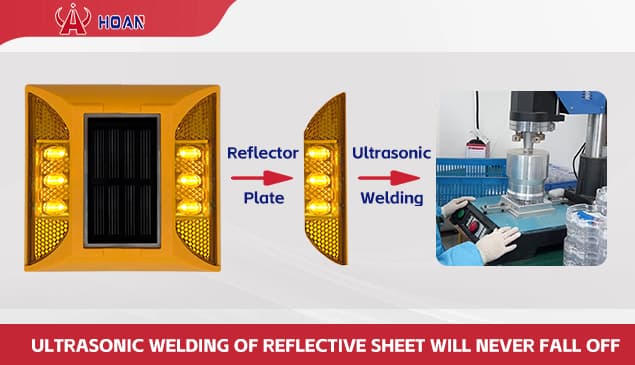

Reflective sheet and shell ultrasonic welding + epoxy resin filling, never fall off.

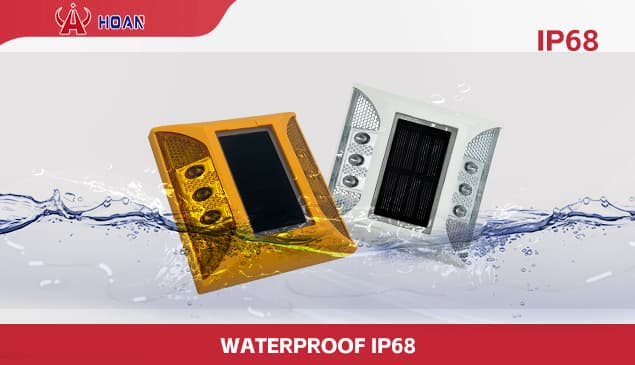

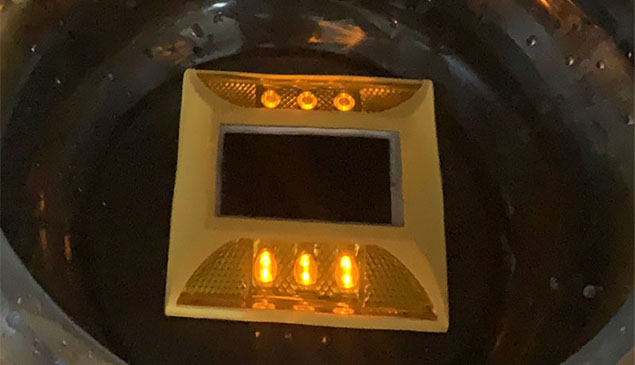

Shell once injection molding, to ensure the protection level IP68.

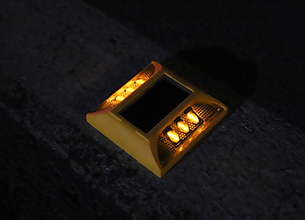

Ultra-high bright bullet LED, visible distance of 800 meters.
High and low temperature resistant power battery, more than 5 years long life.
Product Parameters
Size : 105*105*25mm
Material : fiberglass shell with epoxy filler

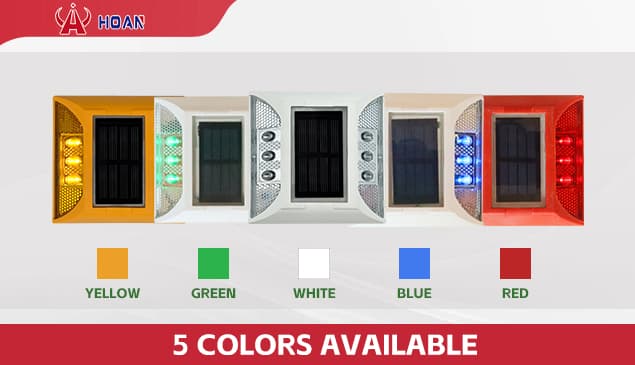

Color: White Yellow Red Blue Green
Working temperature: -20℃~+70℃
Product Install

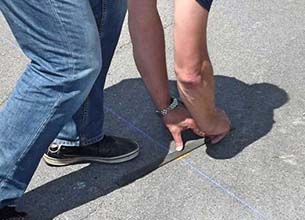

Mark the correct installation location and clean it up (generally 3m apart).

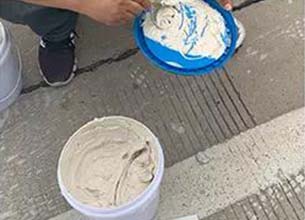

Pour the glue on the installation location.
Clean the bottom of the solar road stud and place it on top.
After installation, clean up the spilled glue and debris around, wait for 4-8 hours to activate.
