Product

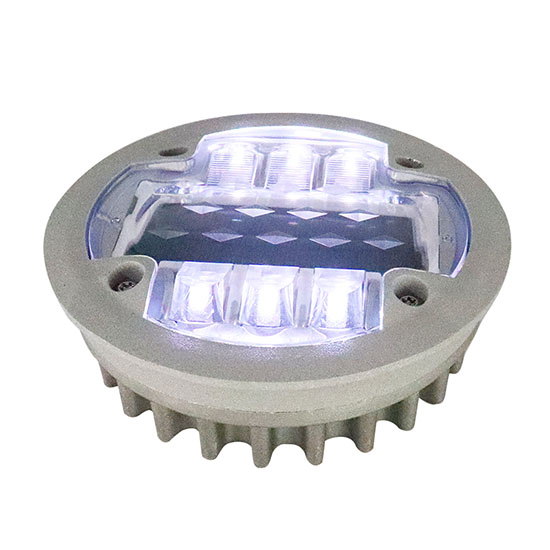

Solar Road Stud HA-RS-A10N(MS-127)

Embedded wireless solar nails protrude from the ground 6MM, 42T pressure resistance, replaceable core to prevent snow plows and road construction damage.
Protection class: IP68
Certificate: CE, ROHS, ISO9001
Warranty: 2 Years
Share With:
Product Introduction
Solar road studs, is a kind of road studs, set along the road surface, for night or rain and fog weather, indicating the direction of the road ahead, by retro-reflective materials, shell, solar panels, LED, control devices. With active light-emitting and passive reflective properties of visual induction, usually used in combination with the marker.
Solar road studs work: during the day, solar panels absorb sunlight, solar energy into electrical energy stored in energy storage devices (batteries or capacitors), at night, the electrical energy in the storage devices automatically converted into light energy (controlled by photoelectric switch), through the LED emits bright light to outline the road, to induce the driver's line of sight.
Product Advantages
01
Shell anti-rust spraying treatment to improve weather resistance.
02
Unique elevation angle design light path, large light-emitting area.
03
Super tough PC material, UV layer coverage.
04
Simple installation, easy maintenance, replaceable LED.
05
High brightness, long life, high pressure resistance.
Product Parameters
Size : 135*47mm
Material : Aluminum alloy shell+Polycarbonate+epoxy filler
Color: White Yellow Red Blue Green
Working temperature: -20℃~+70℃
Product Install
01
Mark the correct installation position (generally 3m apart), use a coring machine to drill holes of suitable size, and then blow dry for cleaning.
02
Prepare the glue in proportion (40-50g/pcs), and pour the glue into three-quarters of the hole.
03
Clean the bottom of the solar road stud and place it in the hole.
04
After installation, clean up the spilled glue and debris around, wait for 4-8 hours to activate.
