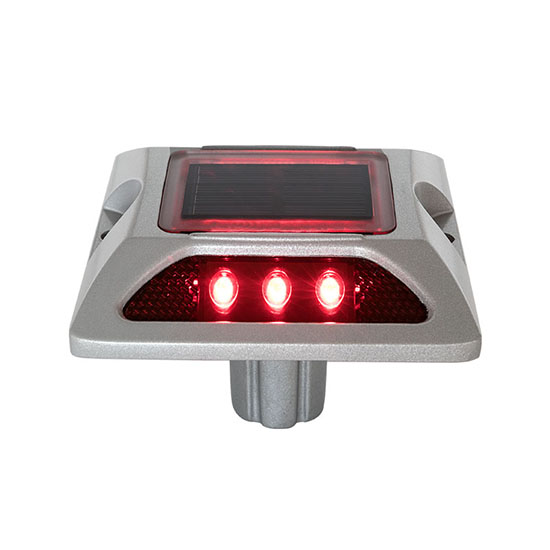

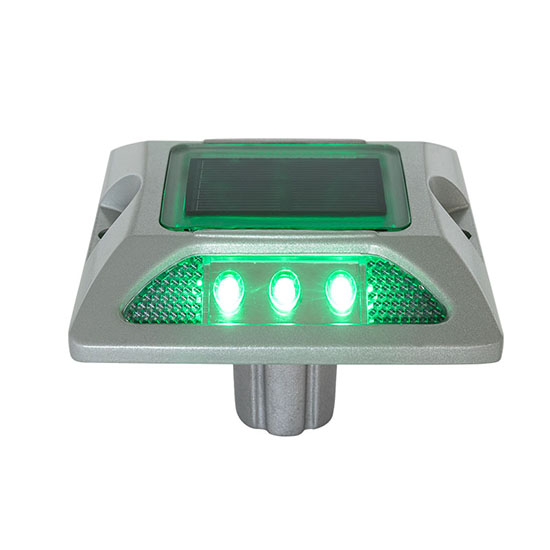

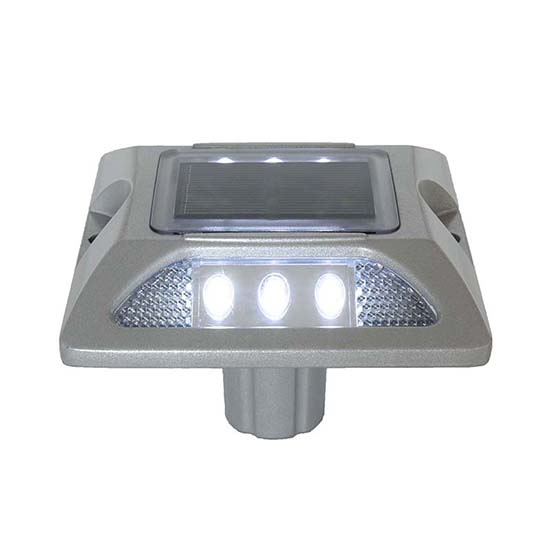

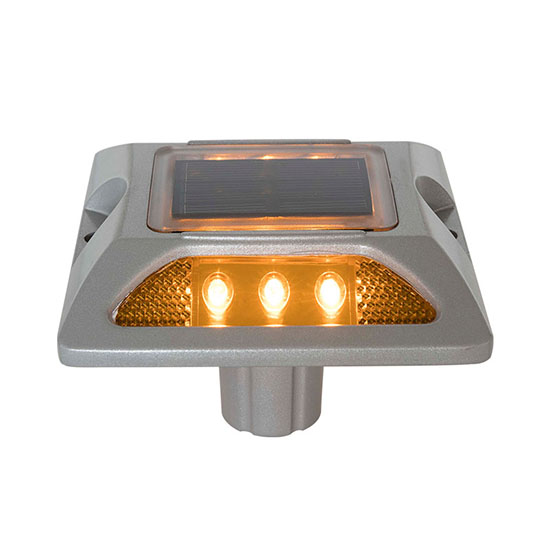

IP68 led solar Powered road stud

Product Introduction

Solar road studs, is a kind of road studs, set along the road surface, for night or rain and fog weather, indicating the direction of the road ahead, by retro-reflective materials, shell, solar panels, LED, control devices. With active light-emitting and passive reflective properties of visual induction, usually used in combination with the marker.

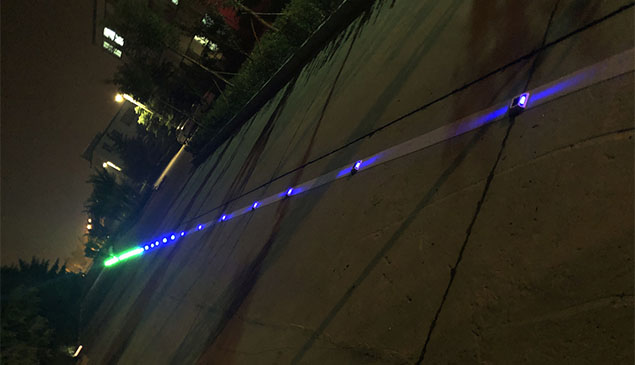

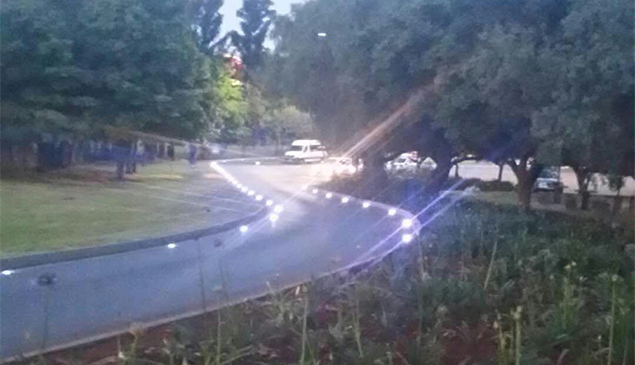

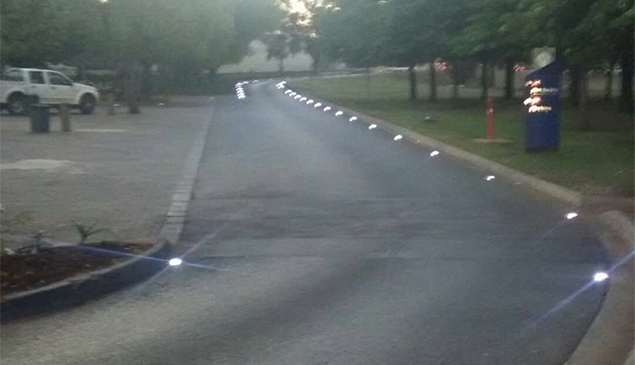

Solar road studs work: during the day, solar panels absorb sunlight, solar energy into electrical energy stored in energy storage devices (batteries or capacitors), at night, the electrical energy in the storage devices automatically converted into light energy (controlled by photoelectric switch), through the LED emits bright light to outline the road, to induce the driver's line of sight.

Product Advantages

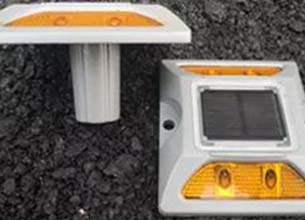

Aluminum alloy shell once die-casting molding, nail surface integration design.

Embedded reflector design, never fall off.

Shell surface oil spray treatment, salt spray resistance.

Ultra-high bright LED, visible distance greater than 500 meters.

Aluminum alloy shell reinforcement rib design, reduce tire friction.

Product Parameters

Body material	Hi-pressure Casting Aluminium alloy
Power supply	Mono crystalline solar panel 2.5V/0.25W
Battery	NI-MH 1.2V/ 600mah or Lithium battery (high temperature resistance);
LED	Ultra bright diameter 5mm 6pcs
LED color	Red, Yellow, Green, Blue, White
working mode	Recharging at day and working automatically at night
Working hours	(1).Blinking:140hours for NI-MH battery; (2).Constant:40hours for NI-MH battery;
Life span	2years for NI-MH battery;
Visual distance	>800m

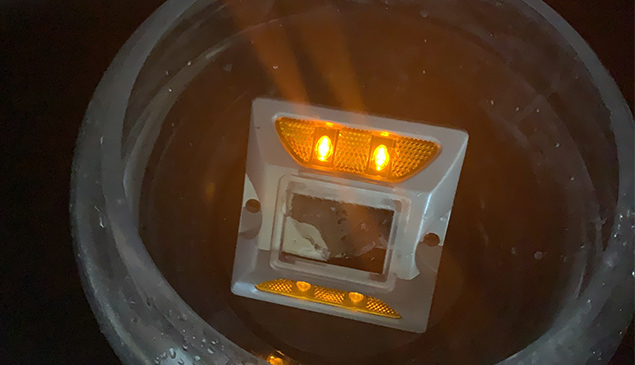

Water proof	IP68
Resistance	>25T
Size	12210423mm+53mm
Carton Size:	1pcs/box; 45pcs/ctn; Weight: 18.5kgs; carton size: 56.534.823.6cm (1pcs/box; 45pcs/ctn; Weight: 40.79bs; Carton size:22.24"13.70"9.29")
Certificate	CE;ROHS;IP68

Product Install

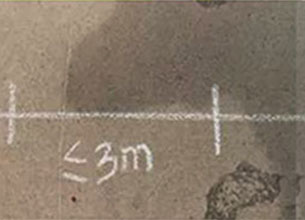

Mark the correct installation location (generally 3m apart).

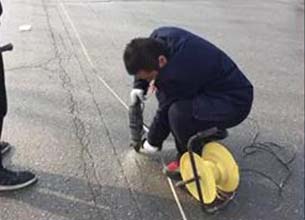

Use the coring machine to take the hole, the depth of the hole is 1cm greater than the depth of the nail foot, and the diameter of the hole position is 2mm greater than the diameter of the nail foot.
