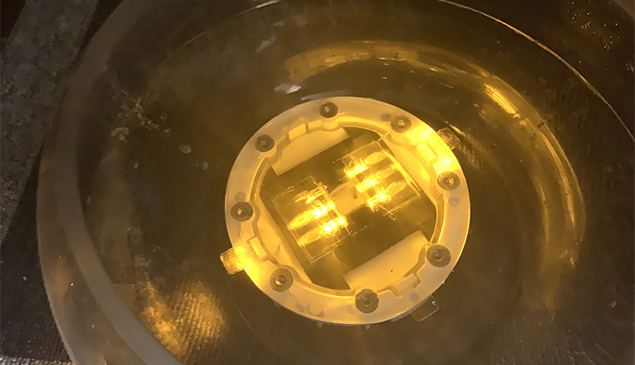

Embedded wireless solar road studs are strong and durable, double IP protection, suitable for road conditions with high traffic flow, 50T pressure resistance.
Solar road studs, is a kind of road studs, set along the road surface, for night or rain and fog weather, indicating the direction of the road ahead, by retro-reflective materials, shell, solar panels, LED, control devices. With active light-emitting and passive reflective properties of visual induction, usually used in combination with the marker.
Solar road studs work: during the day, solar panels absorb sunlight, solar energy into electrical energy stored in energy storage devices (batteries or capacitors), at night, the electrical energy in the storage devices automatically converted into light energy (controlled by photoelectric switch), through the LED emits bright light to outline the road, to induce the driver's line of sight.
Product Advantages
01

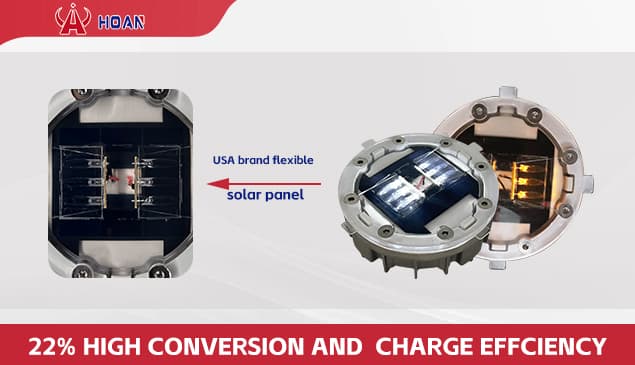

The United States sun power flexible solar panels, large solar charging area.
02
High rate battery, working time greater than 160 hours.
03
Low angle light path design with the ground, visible distance greater than 800 meters.
04

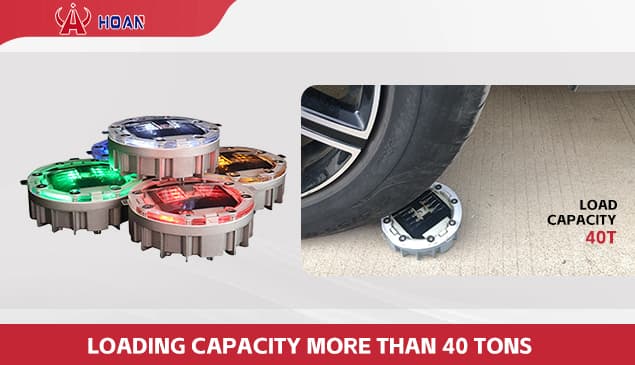

High load resistance, high impact resistance.
05
Limited installation design, ensure the level with the ground.
Product Parameters

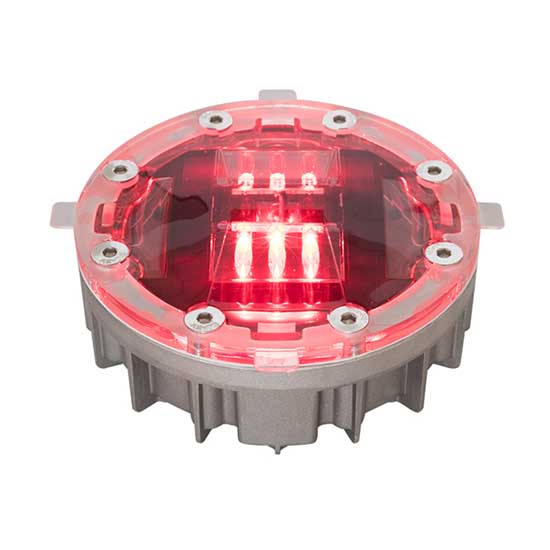

Size :
125*50mm
Material :
Aluminum alloy shell+Polycarbonate+epoxy filler
Color：

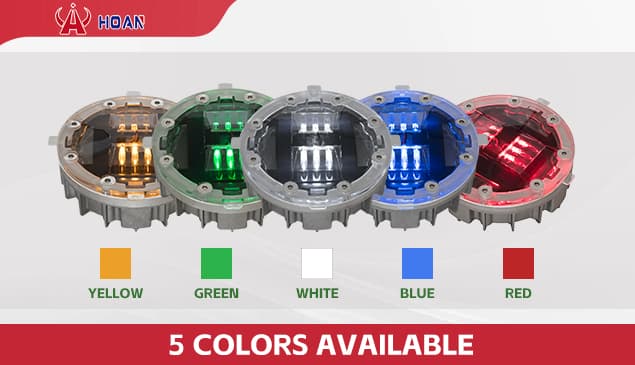

White Yellow Red Blue Green
Working temperature:
-20℃~+70℃
Product Install
01

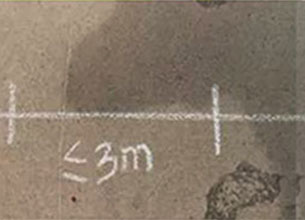

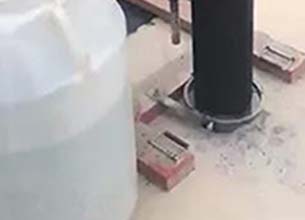

Mark the correct installation position (generally 3m apart), use a coring machine to drill holes of suitable size, and then blow dry for cleaning.
02
Prepare the glue in proportion (40-50g/pcs), and pour the glue into three-quarters of the hole.
03
Clean the bottom of the solar road stud and place it in the hole.
04

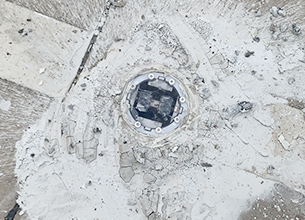

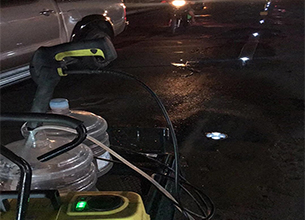

After installation, clean up the spilled glue and debris around, wait for 4-8 hours to activate.
