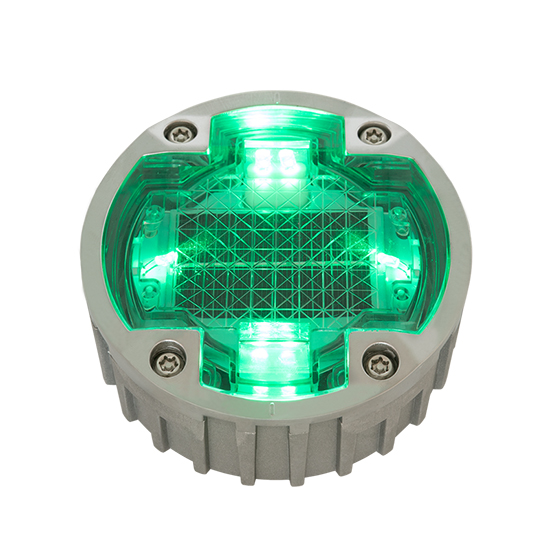

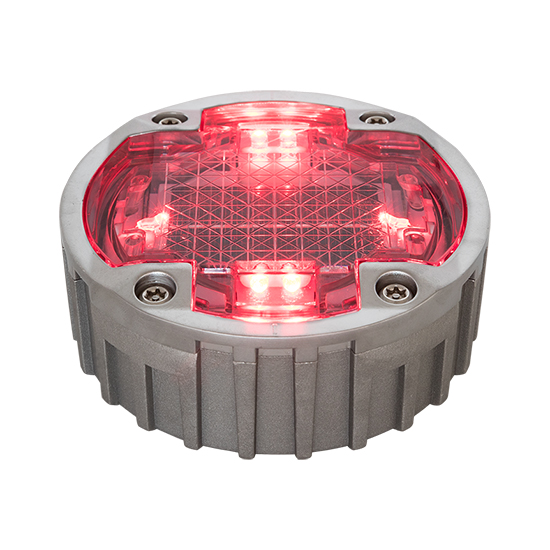

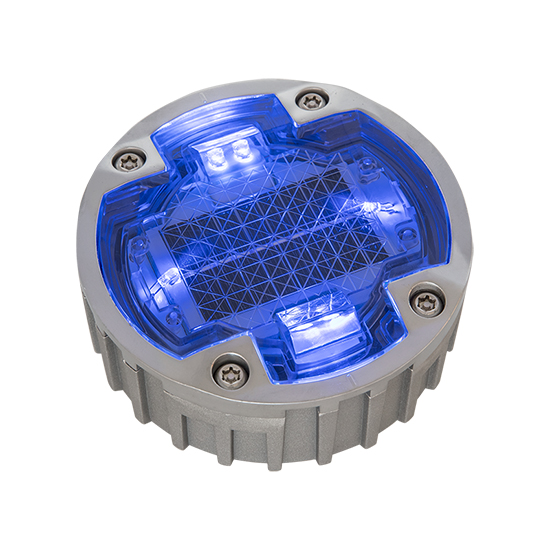

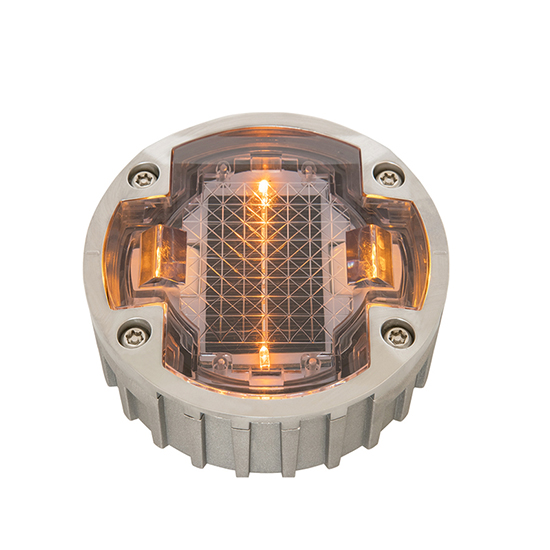

Solar Road Stud HA-RS-A8

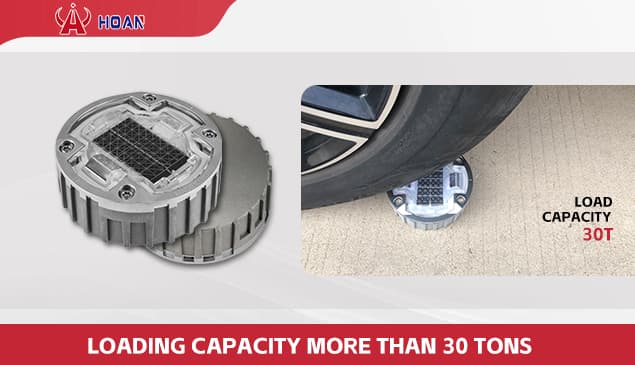

Cast aluminum buried solar nails can be used in the middle of the road, crosswalk, protruding from the road about 6mm, not easy to damage, compressive value of 30T.
Protection class: IP68
Certificate: Certificate:CE, ROHS, ISO9001
Warranty: 2 Years
Share With:
Product Introduction
Solar road studs, is a kind of road studs, set along the road surface, for night or rain and fog weather, indicating the direction of the road ahead, by retro-reflective materials, shell, solar panels, LED, control devices. With active light-emitting and passive reflective properties of visual induction, usually used in combination with the marker.

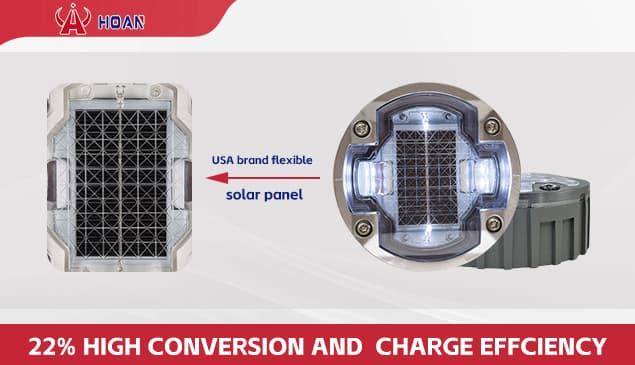

Solar road studs work: during the day, solar panels absorb sunlight, solar energy into electrical energy stored in energy storage devices (batteries or capacitors), at night, the electrical energy in the storage devices automatically converted into light energy (controlled by photoelectric switch), through the LED emits bright light to outline the road, to induce the driver's line of sight.
Product Advantages
01

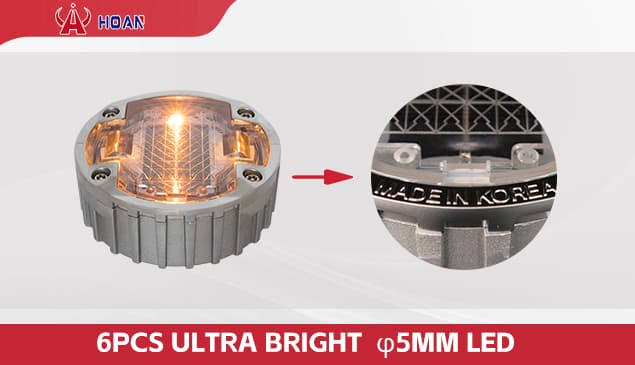

LED unique elevation design, omnidirectional light, high visibility.
02

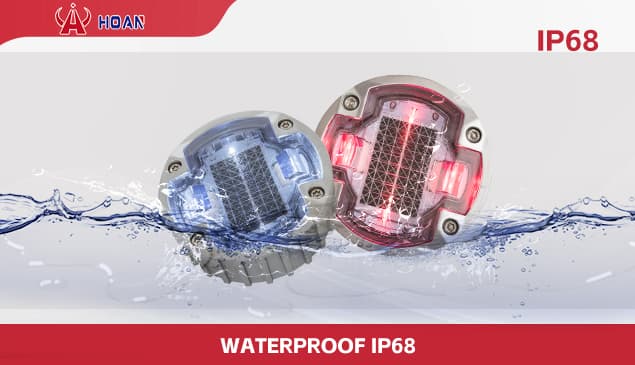

Double coupling structure shell, waterproof IP68.
03
Modular design, replaceable internal modules, easy maintenance.
04
Metal ring metal chrome plating process, improve friction.
05
Embedded design to prevent road construction or snowplow damage.
Product Parameters
Size : 123*45mm
Material : Aluminum alloy shell+Polycarbonate+epoxy filler

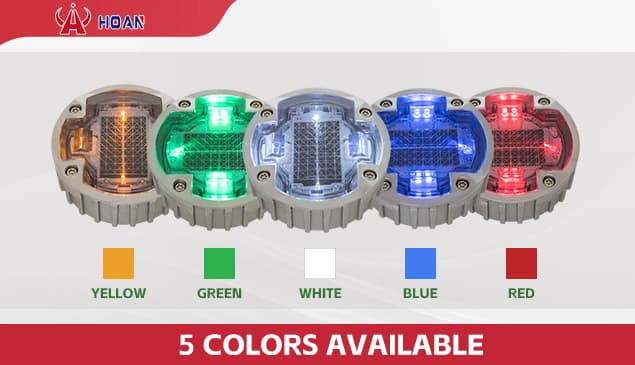

Color: White Yellow Red Blue Green
Working temperature: -20℃~+70℃
Product Install
01

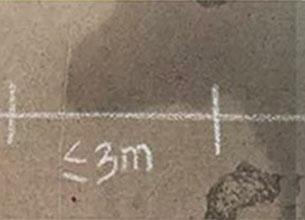

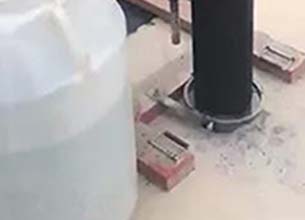

Mark the correct installation position (generally 3m apart), use a coring machine to drill holes of suitable size, and then blow dry for cleaning.
02
Prepare the glue in proportion (40-50g/pcs), and pour the glue into three-quarters of the hole.
03

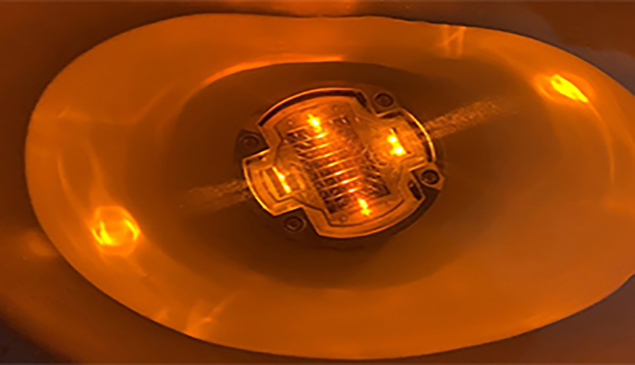

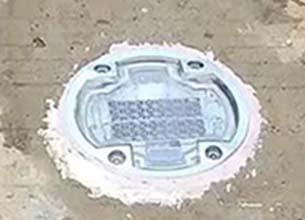

Clean the bottom of the solar road stud and place it in the hole.
04

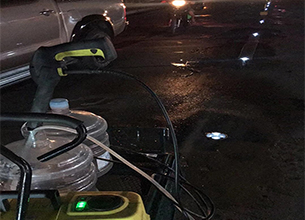

After installation, clean up the spilled glue and debris around, wait for 4-8 hours to activate.
