Conventional single-sided road signs emit light in only one direction, creating visual blind spots on opposing lanes and bends. This results in 30% of night-time lane departure accidents occurring in these high-risk sections. For instance, on rural two-lane roads without central reservations, oncoming vehicles frequently swerve off course due to unseen signage, heightening collision risks.
Dual-faced solar road signs eliminate visual blind spots through bidirectional illumination (e.g., left-right or front-rear), achieving near 360° safety coverage in critical scenarios. They serve as a ‘dual safeguard’ for road safety, particularly suited for traffic guidance in complex road conditions.
This document addresses road management authorities (highway and rural road authorities), engineering procurement teams (urban renewal and scenic route projects), and traffic safety consultants. It provides professional guidance for procurement decisions by examining safety advantages, application scenarios, and cost-benefit analysis.
Double-sided solar road markers are solar-powered road signs equipped with two independent LED light-emitting surfaces (each incorporating a separate optical lens). During daylight hours, built-in solar panels absorb sunlight, converting it into electrical energy stored in batteries. At night or during low visibility, both light-emitting surfaces illuminate simultaneously in opposite directions, enabling bidirectional guidance.
Key distinction from single-sided markers: Single-sided markers serve only one direction, whereas dual-sided markers cover two directions (e.g., opposing traffic flows on dual carriageways), effectively doubling the safety coverage area.
(1) Bidirectional LED Module
Each luminous surface employs 8000-12000mcd high-brightness LEDs, supporting independent dimming and mode switching (constant-on / flashing). Differentiated modes can be configured based on traffic requirements in opposite directions (e.g., flashing warnings for oncoming lanes, constant-on guidance for same-direction lanes).
(2) Dual-Angle Solar Panels
Featuring a 30-45° tilt design (or single adjustable-angle panel covering both directions), these panels efficiently capture sunlight even in unevenly lit environments like tree-lined avenues. Average daily charging time exceeds single-sided markers by 2-3 hours.
(3) High-Capacity Battery
Equipped with a 3000-5000mAh lithium iron phosphate battery, it supports bidirectional illumination for 7-10 days without sunlight. This extended backup duration, surpassing the 5-7 days of single-sided markers, ensures greater reliability during prolonged periods of overcast or rainy weather.
(4) IP68 Waterproof Housing
Constructed from ABS + aluminium alloy, with a temperature tolerance range of -40°C to 80°C. Resists rain, snow, high temperatures, dust and other harsh conditions, adapting to road requirements across diverse climatic zones.

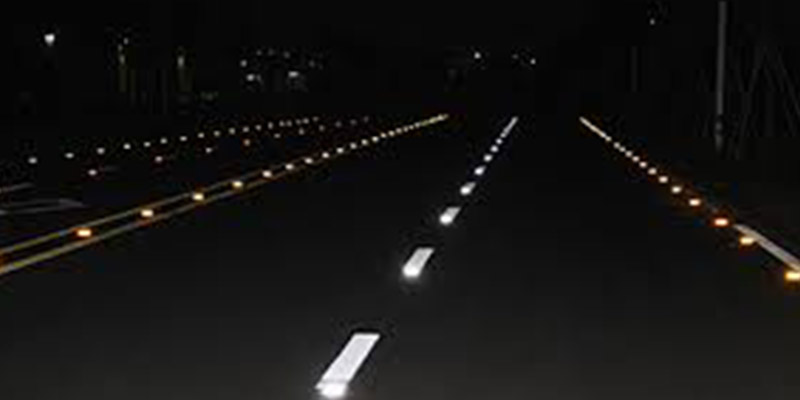

(1) Two-lane rural roads
Single-sided signs only guide traffic in their own direction, leaving oncoming vehicles vulnerable to lane deviation without guidance. Double-sided signs illuminate simultaneously towards both directions, enabling drivers from opposite directions to clearly perceive the light signals and reducing common head-on collisions on rural roads.

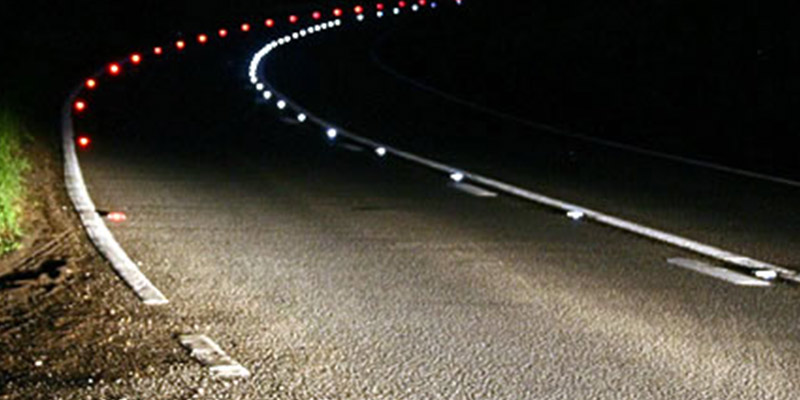

(2) Curved / Mountainous Roads
Single-sided signs at bends may be obscured by terrain. Double-sided signs illuminate both the inside and outside of the curve, enabling drivers to anticipate lane direction in advance. Statistics indicate this reduces bend accidents by 45%.
(1) Rainy and Foggy Weather
Both sides of the LED signs feature fog-specific lenses with ≥90% light transmission. Their high light concentration achieves visibility distances of 150–200 metres in rain or fog, significantly exceeding the 80–120 metres achievable by single-sided signs. This provides drivers with substantially more reaction time.
(2) Night-time construction zones
One side alerts oncoming traffic to slow and yield, while the other delineates the working perimeter of construction vehicles. This prevents collisions between construction and public vehicles, reducing accidents in construction zones by 35%.
Drivers need not ‘search for signs’ in different directions. The continuous bidirectional light guidance provided by double-sided signs reduces reaction time from 1.5 seconds to 0.8 seconds. For vehicles travelling at high speeds, this significantly lowers the probability of accidents.
(1) Scenario challenges
No central reservation, narrow lanes, frequent oncoming traffic; single-sided markers fail to cover opposite lanes, resulting in high night-time accident rates.
(2) Solution
Install double-sided markers along lane edges: white steady light for oncoming lanes, red flashing warning for opposite lanes, creating clear bidirectional boundaries.
(3) Actual Outcomes
Following pilot installation on a Chinese rural road, night-time head-on collisions dropped from an annual average of 15 to 3 incidents, demonstrating significant effectiveness.
(1) Scenario Challenges
Multiple bends on ramps; single-sided markers only cover the main carriageway; entry/exit traffic prone to accidents due to misjudged direction.
(2) Solution
Installing double-sided road markers along ramp edges: green flashing indicators guide vehicles merging onto the main carriageway, while red flashing indicators prompt vehicles exiting to decelerate, enabling drivers to rapidly identify entry/exit points.
(1) Scenario Challenges
Temporary lane shifts require simultaneous warnings for both original and diversion lanes. Single-sided signs lack sufficient coverage, often causing congestion and scrapes.
(2) Solution
Employ portable double-sided markers with magnetic bases along diversion routes: one side alerts original lane traffic to detour, the other guides diversion vehicles to maintain lanes. This reduces congestion rates in construction zones by 25%.
(1) Scenario Challenge
Mixed traffic flow where single-sided markers focus solely on vehicles, potentially neglecting pedestrian and cyclist safety.
(2) Solution
Deploy low-profile double-sided markers emitting white light upward for vehicles and yellow light downward for pedestrians/cyclists. This clearly delineates traffic lanes, reducing close-contact hazards between pedestrians and vehicles.
(1) Dual-Angle Solar Panels
Capture sunlight from two directions. Even if one side of the road is obstructed (e.g., by trees or buildings), the opposite side can still charge normally, preventing power shortages in single-sided road signs caused by insufficient illumination on one side.
(2) Intelligent Controller
Automatically adjusts dual-sided LED brightness: reduces illumination after midnight to conserve power, automatically increases brightness during rain or fog to enhance visibility. Compared to fixed-brightness designs, this extends battery backup time by 30%.
(1) Impact-Resistant Structure
Rounded edges + reinforced base provide 150 kN load-bearing capacity, withstanding repeated heavy truck rolling without damage. Service life of 5-8 years, outlasting single-sided signs (3-5 years).
(2) Self-Cleaning Coating
Hydrophobic coating on LED lens surfaces allows rainwater to swiftly dislodge dust, eliminating frequent manual cleaning. Maintains 90% light transmission after six months of use, ensuring consistent illumination performance.
Supports over five bidirectional independent illumination modes to suit diverse scenarios:
Motorways: Bidirectional slow flashing (1 flash/second) balances warning effectiveness with visual fatigue reduction;
School Zones: Bidirectional constant illumination avoids distracting students with flashing;
Accident sites: Rapid flashing (3 flashes/second) in both directions to intensify warning effects.
(1) Project Context
A 20-kilometre two-lane mountainous road without a central reservation, experiencing an average of 15 night-time head-on collisions annually, where single-faced markers proved ineffective.
(2) Implementation Plan
Installed 500 sets of double-sided solar road markers: white steady light for oncoming traffic, red flashing light for opposite direction, spaced at 10-metre intervals.
(3) Implementation Outcomes
After 12 months, night-time head-on collisions reduced to 3 incidents. Driver satisfaction surveys revealed 92% of respondents felt ‘more reassured when driving at night’.
(1) Project Background
Complex interchange ramps exhibited high accident rates, with single-sided signs failing to clearly guide traffic flow. Night-time accidents accounted for 60% of incidents.
(2) Implementation Approach
Installed 300 sets of double-sided solar-powered road markers on interchange ramps: green flashing for entrances, red flashing for exits, with fog lenses.
(3) Implementation Outcomes
Night-time ramp accidents decreased by 40%, traffic flow speed increased by 15%, and congestion time reduced by 20 minutes per day.
(1) Initial Costs
Double-sided signs cost 30% more per unit than single-sided signs. However, covering both directions eliminates the need for dual installations, reducing overall project costs by 40% compared to installing two sets of single-sided signs.
(2) Accident Cost Savings
The average cost of handling a single night-time road accident (covering medical, repair, and legal expenses) ranges from US$50,000 to US$100,000. Installing double-sided signs along a 10-kilometre stretch of road could prevent an average of 5 accidents annually, yielding savings of US$250,000 to US$500,000. This investment can be recouped within 1-2 years.
(1) Extended Lifespan Reduces Replacement Frequency
A 5-8 year service life reduces replacement frequency by 40% compared to single-sided signs, lowering labour and material costs.
(2) Remote Monitoring Reduces Inspection Requirements
Optional IoT remote monitoring enables real-time tracking of battery levels and LED faults, eliminating routine on-site inspections and cutting inspection costs by 50%.
Dual-faced solar road markers eliminate visual blind spots through bidirectional illumination, offering significant safety advantages in complex road conditions. Combining durability, intelligence, and high cost-effectiveness, they represent an efficient solution for enhancing road safety.
Future integration with smart sensors will enable dual functionality: ‘illuminated guidance + data monitoring’. Built-in traffic flow sensors will transmit real-time data to traffic management platforms, aiding signal timing optimisation. They will also coordinate with autonomous vehicles to provide more precise lane boundary information.
Should you require safety upgrades for rural roads, motorways, scenic routes, or bulk procurement of dual-sided solar road markers, please contact us. We offer bespoke solutions (customisable dimensions, illumination modes, and battery capacity), backed by a five-year warranty and on-site installation guidance. This delivers a safer road environment at lower long-term costs.
