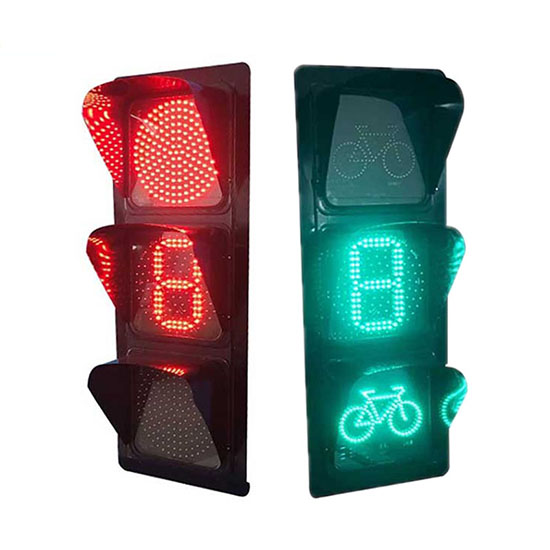

The module adopts Fresnel lens and light distribution lampshade, optical light distribution, large viewing angle, uniform brightness, standard color spectrum, low power consumption, long life, and it is still eye-catching under backlight.
The module adopts Fresnel lens and light distribution lampshade, optical light distribution, large viewing angle, uniform brightness, standard color spectrum, low power consumption, long life, and it is still eye-catching under backlight.
The PCB circuit board is controlled by an industrial-grade microcontroller , temperature range : -30-75°C. With independent watchdog and hardware anti-jamming equipment. If One led has been damaged, which will not affect the work of other leds.
Using sealed waterproof constant current power supply, it can work normally in the range of 100v-277v, with overvoltage and surge voltage resistance. The low temperature - 40 ° to + 80 ° it is better than European and American standards.
This product is produced by a self-developed plastic mold and is injection molded with ABS + PC (polycarbonate), without any recyclable materials. The sealing rubber ring is made of weather resistant silicone material, and the working temperature is - 40 ℃ - + 80 ℃. High flame retardant grade.
Product Advantages
01
Small power supply volume, stable output voltage.
02
Bright Taiwan JINGYUAN led, low loss, uniform brightness, long life, 85% energy saving than traditional light source.
03
Hydrophobic design on the shell surface, high transparency and impact resistance of the light transmitting mask, high strength and convenient installation.
04
Light pole lightening design, wind load reduced by 39%.
05
Weather resistance anti salt spray corrosion material, suitable for high and low temperature environment.
Removing the light plate: turn the screwdriver counterclockwise to disengage the light plate from the buckle, and then turn the light plate counterclockwise to remove it.
02
Connect the signal line (vertical): put the removed lamp panel, and connect the signal line correspondingly as shown in the figure.
03
Put back the light panel：Put the light plate back into the reserved hole of the light box, and then rotate the light plate clockwise.
04
Install the sun hat：Roll the sun hat into a circle, then align it with the positioning card slot and put it into the reserved card slot of the light box to fasten it.
