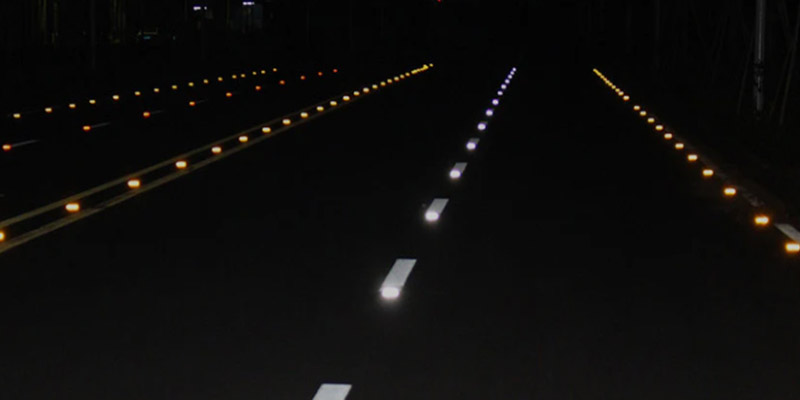

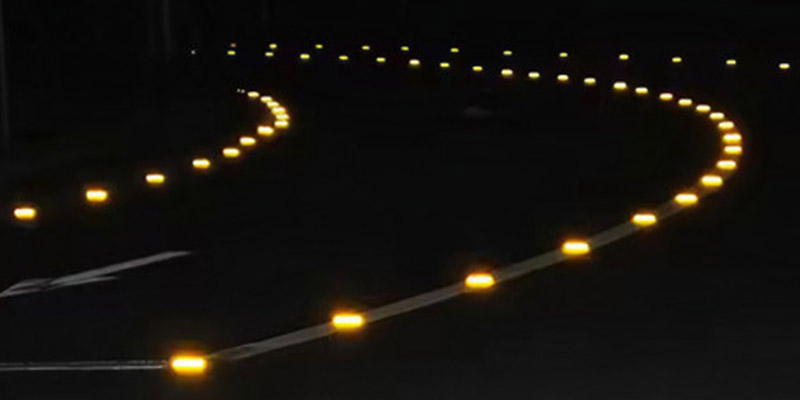

Driving along a country road at night, you might notice rows of bright points flickering along the carriageway where no streetlights exist. These are solar-powered road studs. They don't require wiring, and you've never seen anyone change their batteries, so how do they keep glowing? The underlying logic is actually quite simple, yet it conceals a practical safety design.
For ordinary drivers, knowing it's ‘reliable’ enhances night-time driving confidence. For road managers and procurement officers, grasping its operational logic enables them to judge suitability for specific scenarios (such as remote rural roads or motorway bends), avoiding wasted expenditure on unsuitable products.
Solar road studs function like miniature ‘self-sustaining power stations’:
During daylight, they convert sunlight into stored electrical energy; at night, this stored energy is transformed into warning illumination. The entire process requires no external power source, achieving complete ‘self-sufficiency’.
Reflective markers: Function like ‘mirrors,’ only reflecting light when illuminated by vehicle headlights; otherwise, they become ‘invisible.’
Solar markers: Operate like ‘miniature street lamps,’ emitting their own light even in complete darkness. They are particularly suited for unlit road sections.
(1) Its Function
Much like plant leaves absorbing sunlight, the solar panel captures sunlight and converts it into electricity. Two common types exist:
Monocrystalline silicon panels: ‘Highly efficient’, capable of capturing light even on overcast days or in low-light conditions like dusk, making them suitable for areas with poor sunlight.
Polycrystalline panels: ‘Cost-effective,’ performing well under abundant sunlight, suitable for southern regions with frequent clear days.
(2) Design Details
The panel surface features a layer of tempered glass, resistant to vehicle pressure, rain, and UV radiation (preventing degradation from prolonged exposure). Installation involves a 30-45 degree tilt, precisely aligned with the sun to maximise ‘light-catching’ efficiency.
(1) Function
Excess electricity generated by the panels during daylight hours is stored in the battery, akin to filling a water tank for evening use. Two common types exist:
Lithium-ion battery: Lightweight, with a 3-5 year lifespan, suitable for standard roads;
Lithium iron phosphate batteries: Durable, resistant to high/low temperatures, lasting 5-8 years, suitable for harsh environments like motorways or mountainous regions.
(2) Critical Protection
Batteries fear ‘overcharging’ (excessive charging causes damage) and ‘over-discharging’ (complete depletion renders them useless). Hence, they require a ‘caretaker’ to monitor them – the charge/discharge controller discussed below.
(1) It acts as a ‘Safety Guardian’
Prevents overcharging: Automatically cuts off charging when full to avoid swelling or damage;
Prevents over-discharging: Temporarily shuts off LED lights when power is low, conserving residual charge for ‘life support’ and extending battery lifespan;
Automatic light control: During daylight hours, it instructs the panel to ‘focus on charging’; at night, it directs the battery to ‘power the LEDs’ without manual intervention.
(2) Why It Matters
Without this ‘steward’, the battery might fail within a year; with it, battery life extends by over 30%, making long-term use more economical.
(1) Its Function
Converts electrical energy from the battery into visible warning light, serving as the road stud's ‘final output’.
Brightness: Need not be excessive (8000-12000mcd suffices), as excessive brightness may dazzle drivers;
Colour: Red (danger zones, e.g., accident-prone areas), Yellow (caution zones, e.g., construction sites), White (guidance zones, e.g., lane boundaries);
Mode: Constant-on (residential areas, minimising disturbance), slow-flash (motorways, clear guidance), fast-flash (temporary works, enhanced warning).
(2) Energy-Efficient Design
LED lights consume minimal power—a single LED chip draws just 0.5–1W, equivalent to a mobile phone charger. Thus, a single battery sustains operation throughout the night.
Upon sunrise, solar panels commence ‘light harvesting,’ converting sunlight into direct current;
The controller stabilises the current and directs it to charge the battery;
Once fully charged (e.g., lithium-ion batteries reaching 4.2V), the controller automatically disconnects to prevent overcharging.
As darkness falls, the light sensor detects brightness below 500 lux (roughly equivalent to pre-streetlight illumination at dusk) and signals the controller: ‘Time to illuminate’;
The controller switches to ‘Discharge Mode’, directing the battery to power the LED lights.
LED lights operate according to preset patterns (e.g., slow flashing), forming luminous markers along the carriageway to guide drivers in maintaining their lane;
The controller continuously monitors battery charge. Should the charge fall below 20% (e.g., voltage drops to 3.0V), it temporarily deactivates the LEDs to conserve power for the next day's charging, preventing battery failure.
As daylight increases, the light sensor detects brightness exceeding 10,000 lux (roughly equivalent to a clear morning) and signals the controller: ‘Time to charge’;
The controller switches off the LEDs, reverting to ‘Charging Mode’ to commence the next daily cycle.
Monocrystalline silicon panels capture scattered light on cloudy days, enabling slow charging even without direct sunlight.
Should sunshine be absent for seven consecutive days, high-capacity batteries (e.g., 5000mAh lithium iron phosphate) store sufficient energy to power LEDs for seven nights, preventing service interruption.
High temperatures (e.g., 60°C road surfaces in summer): Lithium iron phosphate batteries resist swelling from heat exposure; ventilation holes in the casing prevent internal components from overheating.
Heavy rain: IP68-rated waterproof casing, akin to mobile phone protection, keeps rain out; hydrophobic coating on the panel causes rainwater to bead and run off, maintaining light capture efficiency.
The aluminium alloy casing can endure 150 kilonewtons of force (equivalent to a 15-tonne lorry driving over it) without shattering.
LED lights are embedded within the casing, protected from tyre abrasion and resistant to damage even if run over by vehicles.
Rural and mountain roads without street lighting: self-illuminating, eliminating the need for wiring;
Highway bends and long downhill gradients: provide extended night-time visibility, guiding drivers in advance;
Temporary construction routes: rapid installation (10 minutes per unit), removable for reuse post-project;
School and residential areas: low-brightness constant-on mode minimises disturbance while prompting drivers to slow down.
Whether selecting warning devices for remote rural roads or busy motorways, solar road studs offer adaptable solutions through their self-powered operation, ease of installation, and extended lifespan. We provide customised variants for diverse scenarios (e.g., high-temperature models, high-capacity versions) alongside on-site installation guidance. Contact us at any time to ensure every stretch of road benefits from a reliable ‘night-time guide’.
